LS-B3L 4 cavity semi automatic machine making 10ML To 3L PET plastic bottle

LS-B3L 4 cavity semi automatic machine making 10ML To 3L PET plastic bottle

LS-B3L manual plastic bottle making machine can produce different shapes from 10ML to 3L PET carbonated bottle , mineral bottle , pesticide bottle , juice bottle ,cosmetics bottle, and other plastic PET containers. High quality,low defect rate,easy operation.

Machine Parts

  • a.PLC controller and screen : Thinget(China)
  • b.Pneumatic parts:YongCheng (China)/Festo(Germany)
  • c.Valve parts: STNC (China)
  • d.Other parts are world-famous brands

Follow us on

Machine Features

  • A.Advanced PLC control system with convenient operation.

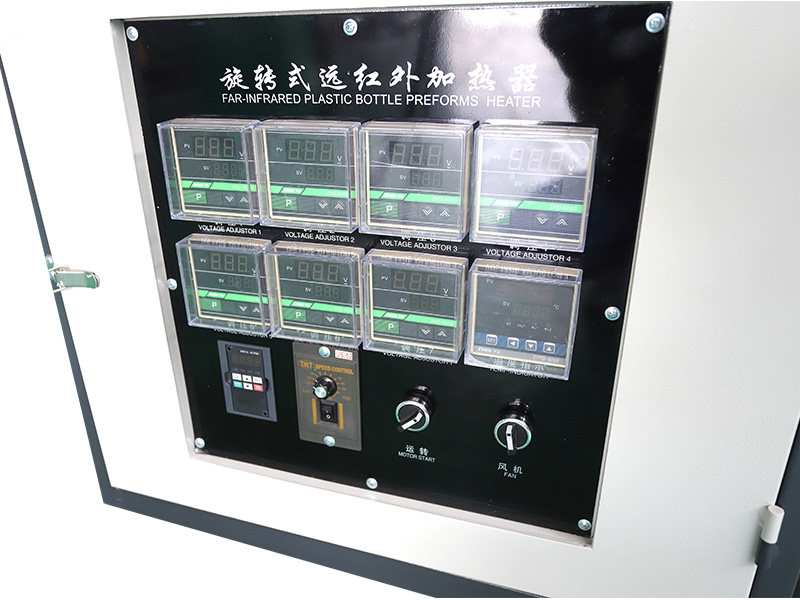

  • B.Precise infrared heating, the preform rotates by itself and on the orbit at the same time, with strong penetration and high heating efficiency.
  • C.Two ways of operate: automatic and manual.
  • D.Safety, high efficiency and energy saving.
  • E.Simple installation and operation.
  • F.Long time after sales service.

Product Detail

Model

LS-B3L

Theoretical output

1800BPH

Heating capacity

15KW

Max bottle volume

3L -4cavity

Blowing pressure

≦3.0MPA

Motion pressure

≦1.0MPA

Max diameter*height

Φ950*H320

Mould thickness

120-250MM

Weight

1300KGS

Main machine size

1620*620*1600MM

Heater size

1700*650*1450MM

About Us

LONES Plastic Machinery Co., Ltd.

LONES Plastic Machinery Co., Ltd. is located in Huangyan Zone, Taizhou City, focusing on PET bottle design, semi-automatic and full-automatic bottle blowing machines, bottle mold manufacturing, pet preform, bottle cap molds etc as well as a series of product solutions; products are widely used In: mineral water, beverages, food, medicine, chemistry, reagents and other fields;

As always, the factory adheres to the concept of "Reputation priority, Service priority, Reliable quality", and manufactures bottle blowing machine with stable performance, low energy consumption, simple operation and durability to benefit every customer and provide customers with comprehensive technical support and services;

In more than ten years of business, the factory's equipment has been exported to Southeast Asia, the Middle East, Europe, South America, North America, Australia, Africa and other countries, and at the same time, received customer satisfaction reviews.

Focus On Your Needs

LONES Plastic Machinery is obsessed with every detail of the LS-B3L 4 cavity semi automatic machine making 10ML To 3L PET plastic bottle and fast and efficient after-sales service; every machine will be responsible for it; every problem will be taken seriously; Every promise will be fulfilled; LONES Machinery helps customers generate economic benefits, which is our unremitting pursuit.
