LS-A1-15L 1 cavity 3-5 gallon fully automatic PET bottle blow molding machine for 10L to 15L bottles

LS-A1-15L 1 cavity 3-5 gallon fully automatic PET bottle blow molding machine for 10L to 15L bottles

LS-A1-15L full automatic 5 gallon pet bottle stretch blow moulding machine can produce different shapes from 10L to 15L water bottles,edible oil bottles and other bigger plastic PET containers. High speed,low defect rate,stable running and easy operation.

Machine Parts

  • a.PLC controller touch screen : Mitsubishi (Japan)
  • b.Pneumatic parts:AIRTAC(TAIWAN)
  • c.Controller of stretch ,shift ,clamping servo motor : Mitsubishi(Japan)
  • d.Other parts are world-famous brands

Follow us on

Machine Features

  • A.Advanced PLC control system and touch screen with convenient operation.

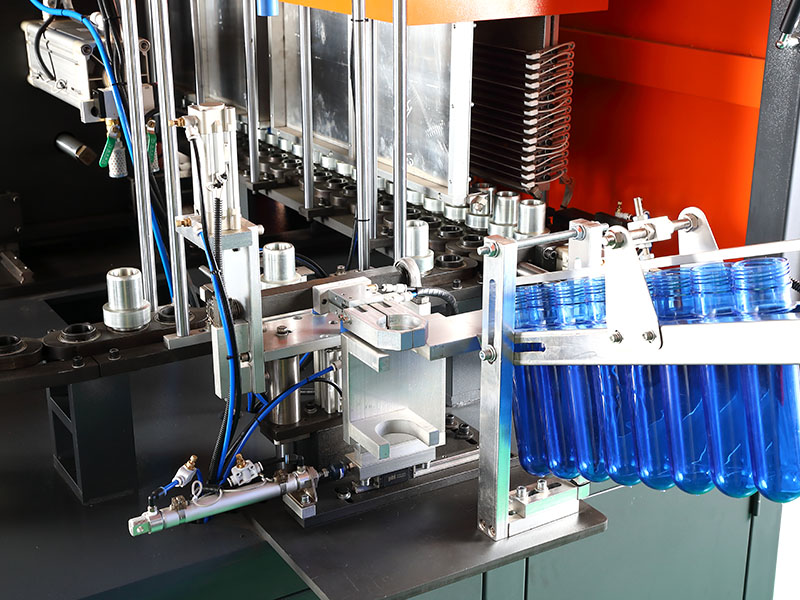

  • B.High efficiency automatic preform loading device.
  • C.Precise infrared heating, the preform rotates by itself and on the orbit at the same time, with strong penetration and high heating efficiency.
  • D.High security ,when a failure occurs during action or machine running,the program will  alarm immediately and display the cause of the failure.
  • E.Two ways of operate: automatic and manual.
  • F.Customized machine design saves space and energy.
  • G.Simple installation and operation.

Product Detail

Model NO.

LS-A1-15L

Theoretical Output

450pcs/hr

Max.Container Volume

15L

Max. Neck Diameter

60mm

Max. Container Diameter

110mm

Max. Container Height

450mm

Number Of Cavity

1 cavity

Total Power

40kw

Use Power

25kw

Working Pressure

1.0mpa

Low Pressure Consuming

1400L/min

Blow Pressure

≤3.5mpa

High Pressure Consuming

1200L/min

Machine Size

3x2.0x2.0m

Machine Weight

3.5T

Feeding Machine Size

2.0x1.2x2.5m

Feeding Machine Weight

0.3T

*The machine can be customized according to the bottle size.
